New Bacon2D API

Hi all,
six months ago I wrote a blogpost to explain how to create your first game with Bacon2D. Since there developers implemented a lot of new things, and changed API. So it’s time to rewrite the tutorial with the new API. If you already read the first tutorial, just check the blue sentences.

Otherwise, if it’s the first time you read this blogpost, you can skip blue sentences, because they only underline differences with the first version

Let’s start! What’s Bacon2D?

Bacon2D is a framework to ease 2D game development, providing ready-to-use QML elements representing basic game entities needed by most of games.

In this tutorial I’ll explain you how I created my first QML game, 100balls, that you could find on Ubuntu Store on Phones. Source is available on GitHub. This is not a tutorial on QML or Javascript, so I focus only on Bacon2D components, and I leave to you all other things, such implementing advanced features in the game, and I suppose that you already know QML. 100balls is a very simple but addictive game. You have to put as many balls as you can in a moving glass, trying to not lose any.

Installation

First of all we need to install Bacon2D on our system. If you are on Ubuntu 15.04 (or later) you have just to install one package:

sudo apt-get install qtdeclarative5-bacon2d1.0

If you have Ubuntu 14.04 or 14.10 you can add the Bacon2D repository to your system:

sudo apt-add-repository ppa:bacon2d-team/ppa
sudo apt-get update
sudo apt-get install qtdeclarative5-bacon2d1.0

Otherwise we need to take source and compile it:

git clone https://github.com/Bacon2D/Bacon2D.git
git submodule update --init
cd Bacon2D
mkdir build && cd build
qmake ..
make
sudo make install

Now you have Bacon2D on your system, and you can import it in every project you want.

A first look to Bacon2D

Bacon2D provides a good number of custom components for your app. Of course, I can’t describe them all in one article, so please read the documentation. We’ll use only few of them, and I think the best way to introduce you to them is writing the app.

First of all, we create our base file, called 100balls.qml:

import QtQuick 2.3
import Bacon2D 1.0

The first element we add is the Game element. Game is the top-level container, where all the game will be. We set some basic property and the name of the game, with gameName property:

import QtQuick 2.3
import Bacon2D 1.0

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want
}

But the Game itself is useless, we need to add one or more Scene to it. A scene is the place where all PhysicsEntity of the game will be placed. Scene has a lot of properties, at the moment now is important to set two of them: running indicates if all things in the scene will move, and if game engine works; second property is physics, that indicates if Box2D has to be used to simulate physic in the game. We want a game where some balls fall, so we need to set it to true.

Also, we need to set a Game property: currentScene. It indicates, as name said, which is the currentScene, so you could have more than one scene, and change them during the game. Maybe you want to use a Scene as main menu, or you have more than one level, and every level is a scene, and so on. You specify which is the current scene by its id.

import QtQuick 2.0
import Bacon2D 1.0

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want

    currentScene: gameScene

    Scene {
        id: gameScene
        physics: true
        running: true

        anchors.fill: parent
    }
}

Now we have a game, and a scene where we want to run our game. So, in our game we need 100 balls, it’s time to create them! A ball is a PhysicsEntity, that is basic game entity, includes physics (Box2D) properties, responds to scene updates and can contain game logic. To manage balls easily we create a new component in a new file. All components should be in the “components” folder. We call the file Ball.qml, and we put in it something like this:

import QtQml 2.2
import QtQuick 2.3
import Bacon2D 1.0

Component {
    PhysicsEntity {
        id: ballEntity
        height: 13
        width: 13

        Rectangle {
            // This is the drawn ball
            radius: parent.width / 2

            color: Qt.rgba(0.86, 0.28, 0.07, 1)  // #DD4814

            height: parent.height
            width: parent.width
        }
    }
}

This should be easy to understand, there is nothing related to Bacon2D: we created a Rectangle with a radius that is half of its size: a circle.

Differences with the previous version: the Entity is called PhysicsEntity

We could easily add 100 of them in our scene:

import QtQuick 2.3
import Bacon2D 1.0
import "components"

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want
    currentScene: gameScene

    Scene {
        id: gameScene
        physics: true
        running: true

        anchors.fill: parent

        Ball {
            id: ball
        }

        Component.onCompleted: {
            for (var i = 0; i < 10; i++) {
                for (var j = 0; j < 10; j++) {
                    var newBox = ball.createObject(gameScene);
                    newBox.x = gameScene.width / 2 - 100 + 15*j;
                    newBox.y = (15*i) - 10;
                }
            }
        }
    }
}

Again, nothing strange: I imported Ball.qml and created 100 of them. Should be interesting to see that I didn’t attach the balls to scene itself, but to the world that the scene creates. Althought you’ll don’t use the world component on its own again, it’s important this distinction: objects that you want to add in a scene have to be attached to the world component.

Differences with the previous version: the ball object has been added to gameScene and not to gameScene.world

Now, if you run your app you should have something like this: Our first game

Yes, nothing so exciting. Maybe we need to add some physic to the balls. First of all, we need to say to Bacon 2D what are the outlines of our balls: we’ll use the fixtures property:

fixtures: Circle {
    anchors.centerIn: parent
    radius: parent.width / 2

    density: 1
    friction: 0.5
    restitution: 0.2
}

Fixture itself it’s quite interesting, with a rich documentation. Of all properties I’m interested in only 3:

  • density: This property represents the density used to compute the mass properties of the parent entity.
  • friction: Friction is used to make objects slide along each other realistically.
  • restitution: Restitution is used to make objects bounce.

We add this fixtures to Ball.qml, along with other 2 properties: bodyType, that could be Body.Static, Body.Kinematic or Body.Dynamic (_in the previous version was Entity instead of Body) and sleepingAllowed. What does sleep mean? Well it is expensive to simulate bodies, so the less we have to simulate the better. When a body comes to rest we would like to stop simulating it. Unfortunately, our balls can’t sleep, because is needed a collision to wake up them, and there aren’t collisions in our game. As bodyTime we choose Body.Dynamic, so the body is fully simulated.

import QtQml 2.2
import QtQuick 2.3
import Bacon2D 1.0

Component {
    PhysicsEntity {
        id: ballEntity
        height: 13
        width: 13

        bodyType: Body.Dynamic
        sleepingAllowed: false

        fixtures: Circle {
            // This is the physic entity
            radius: target.width / 2
            density: 1
            friction: 0.5
            restitution: 0.2
        }

        Rectangle {
            // This is the drawn ball
            radius: parent.width / 2

            color: Qt.rgba(0.86, 0.28, 0.07, 1)  // #DD4814

            height: parent.height
            width: parent.width
        }
    }
}
Differences with the previous version: the fixtures objects don't need the anchors property anymore, and they use target instead of parent

Now, if you start the app you’ll see the balls fall! Yeah! Things are becoming pretty interesting, aren’t them?

Building the game

We want that users choose when the balls have to fall, so we create a new component, called Bowl.qml, in the folder components. As before, we need to draw it and to create fixtures. This is a bit boring, because you have to think to all sizes. So, this is the file:

import QtQuick 2.3
import Bacon2D 1.0

Entity {
    height: 300
    width: 250

    fixtures: [
        // Left border
        Edge {
            vertices: [
                Qt.point(0, 0),
                Qt.point(0, target.height * 2/5)
            ]
        },
        Edge {
            vertices: [
                Qt.point(0, target.height * 2/5),
                Qt.point(target.width * 3/8, target.height * 3/5)
            ]
        },
        Edge {
            vertices: [
                Qt.point(target.width * 3/8, target.height * 3/5),
                Qt.point(target.width * 3/8, target.height)
            ]
        },

        // Right border
        Edge {
            vertices: [
                Qt.point(target.width, 0),
                Qt.point(target.width, target.height * 2/5)
            ]
        },
        Edge {
            vertices: [
                Qt.point(target.width, target.height * 2/5),
                Qt.point(target.width * 5/8, target.height * 3/5)
            ]
        },
        Edge {
            vertices: [
                Qt.point(target.width * 5/8, target.height * 3/5),
                Qt.point(target.width * 5/8, target.height)
            ]
        },

        // Top pyramid
        Edge {
            vertices: [
                Qt.point(target.width / 4, target.height / 4),
                Qt.point(target.width / 2, target.height / 8),
            ]
        },
        Edge {
            vertices: [
                Qt.point(target.width / 2, target.height / 8),
                Qt.point(target.width * 3/4, target.height / 4)
            ]
        }
    ]

    Canvas {
        id: canvas
        anchors.fill: parent

        onPaint: {
            var context = canvas.getContext("2d")
            context.beginPath();
            context.lineWidth = 5;

            // Left border
            context.moveTo(0, 0);
            context.lineTo(0, height * 2/5);
            context.lineTo(width * 3/8, height * 3/5);
            context.lineTo(width * 3/8, height);

            // Right border
            context.moveTo(width, 0);
            context.lineTo(width, height * 2/5);
            context.lineTo(width * 5/8, height * 3/5);
            context.lineTo(width * 5/8, height);

            // Pyramid
            context.moveTo(width / 4, parent.height / 4);
            context.lineTo(width / 2, parent.height / 8);
            context.lineTo(width * 3/4, parent.height / 4);

            context.strokeStyle = "black";
            context.stroke();
        }
    }
}

Nothing new here. Yes, there is the Canvas element, but I think it’s easy to understand. Anyway, I don’t want to explain Canvas in this tutorial, so please read the official documentation.

We need to import the new component in the main file, just before the ball element:

import QtQuick 2.3
import Bacon2D 1.0
import "components"

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want
    currentScene: gameScene

    Scene {
        id: gameScene
        physics: true
        running: true

        anchors.fill: parent

        Bowl {
            id: bowl
            anchors.horizontalCenter: parent.horizontalCenter
        }

        Ball {
            id: ball
        }

        Component.onCompleted: {
            for (var i = 0; i < 10; i++) {
                for (var j = 0; j < 10; j++) {
                    var newBox = ball.createObject(gameScene);
                    newBox.x = gameScene.width / 2 - 100 + 15*j;
                    newBox.y = (15*i) - 10;
                }
            }
        }
    }
}

Try to start the app now, it’s beatiful, isn’t it? Next thing to do is to create the door, and to check the input from the user to open it.

There is a interesting thing in this code, so first I’ll show it, then I’ll explain the new property:

PhysicsEntity {
    id: door
    height: 10
    width: 62.5       // This is the width of the bottleneck of the bowl
    anchors.top: bowl.bottom
    anchors.horizontalCenter: parent.horizontalCenter

    fixtures: Edge {
        sensor: isDoorOpen
        vertices: [
            Qt.point(0, 0),
            Qt.point(width, 0)
        ]
    }

    Canvas {
        id: canvas
        visible: !isDoorOpen    // When the user clicks, hide this

        anchors.fill: parent

        onPaint: {
            var context = canvas.getContext("2d");
            context.beginPath();
            context.lineWidth = 5;

            context.moveTo(0, 0);
            context.lineTo(width, 0);

            context.strokeStyle = "black";
            context.stroke();
        }
    }
}

This entity is a line, and we put it at the end of the bottleneck. The interesting part is inside a fixture: the sensor property. This property determines if the fixtures is considered a sensor during collision detection. If it’s a sensor, it doesn’t interfere with others entities. So, when our bool property isDoorOpen becomes true, this element becomes a sensor, and balls can fall.

Differences with the previous version: the fixtures object now is an Edge and not a Box with an Edge inside

When is the door open? Simple, when the user is pressing anywhere on the screen. We only need a MouseArea to set this behavior:

MouseArea {
    anchors.fill: parent
    onPressed: isDoorOpen = true;
    onReleased: isDoorOpen = false;
}

This is our 100balls.qml file now:

import QtQuick 2.3
import Bacon2D 1.0
import "components"

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want
    currentScene: gameScene

    property bool isDoorOpen

    Scene {
        id: gameScene
        physics: true
        running: true

        anchors.fill: parent

        Bowl {
            id: bowl
            anchors.horizontalCenter: parent.horizontalCenter
        }

        Ball {
            id: ball
        }

        PhysicsEntity {
            id: door
            height: 10
            width: 62.5       // This is the width of the bottleneck of the bowl
            anchors.top: bowl.bottom
            anchors.horizontalCenter: parent.horizontalCenter

            fixtures: Edge{
                sensor: isDoorOpen
                vertices: [
                    Qt.point(0, 0),
                    Qt.point(width, 0)
                ]
            }

            Canvas {
                id: canvas
                visible: !isDoorOpen    // When the user clicks, hide this

                anchors.fill: parent

                onPaint: {
                    var context = canvas.getContext("2d");
                    context.beginPath();
                    context.lineWidth = 5;

                    context.moveTo(0, 0);
                    context.lineTo(width, 0);

                    context.strokeStyle = "black";
                    context.stroke();
                }
            }
        }

        MouseArea {
            anchors.fill: parent
            onPressed: isDoorOpen = true;
            onReleased: isDoorOpen = false;
        }

        Component.onCompleted: {
            for (var i = 0; i < 10; i++) {
                for (var j = 0; j < 10; j++) {
                    var newBox = ball.createObject(gameScene);
                    newBox.x = gameScene.width / 2 - 100 + 15*j;
                    newBox.y = (15*i) - 10;
                }
            }
        }
    }
}

We have something interactive now! Wonderful, the app is starting to be a game!

The glasses

Next step is building the glass where balls fall, then create a lot of them, and check if balls pass trought them or outside. As every new component, we create a file in the components folder and, with a lot of fantasy, we call it Glass.qml

Again, first things first: we need to draw it, that is a bit boring. So for now I write only the code to draw the glass:

import QtQuick 2.3
import QtQml 2.2
import Bacon2D 1.0

Component {
    PhysicsEntity {
        id: glass

        height: 80
        width: 80

        fixtures: [
            Edge {
                vertices: [
                    Qt.point(0, 0),
                    Qt.point(target.width / 4, target.height)
                ]
            },
            Edge {
                vertices: [
                    Qt.point(target.width, 0),
                    Qt.point(target.width * 3/4, target.height)
                ]
            }
        ]

        Canvas {
            id: glassCanvas
            anchors.fill: parent

            onPaint: {
                var context = glassCanvas.getContext("2d");
                context.beginPath();
                context.strokeStyle = Qt.rgba(0.86, 0.28, 0.07, 1);        // #DD4814 - Ubuntu Orange
                context.moveTo(0, 0);
                context.lineTo(width / 4, height);
                context.lineTo(width * 3/4, height);
                context.lineTo(width, 0);
                context.stroke();
                context.fillStyle = Qt.rgba(0.86, 0.28, 0.07, 0.5);
                context.fill();
            }
        }
    }
}

Pretty simple, only a bit of math. But we need also to understand when a ball falls in the glass, so we add a sensor at the bottom of the glass, at the end of the fixtures:

Edge {
    vertices: [
        Qt.point(target.width / 4, target.height),
        Qt.point(target.width * 3/4 , target.height)
    ]
    sensor: true
    onBeginContact: {
        var body = other.getBody();
        body.target.glassContact = true;
    }
}

Oh, wow, something new! What’s onBeginContact? Well, I think it explains itself: it’s called when an object touches our sensor. Inside it you could use the keyword body.target (after you took the other body with other.getBody()) to access to property of object that collides with the sensor. So, I created a bool var in Ball.qml that manages contacts, like this:

property bool glassContact: false
Differences with the previous version: how onBeginContact is managed is different: we need to take the other body and then use target to manage the contact

This is awesome, because we could change all what we want of entities that touch a sensor. Going on with our glass, they don’t use physic, so we use as bodyType Body.Kinematic. We also could leave it to sleep, so we set sleepingAllowed as true. Now, time of a new property, linearVelocity. It indicates the velocity of the object (you don’t say?). We want our glasses move from right to left, so it has a negative velocity:

linearVelocity: Qt.point(-3,0)

Now our Glass.qml should be like this:

import QtQuick 2.3
import QtQml 2.2
import Bacon2D 1.0

Component {
    PhysicsEntity {
        id: glass

        height: 80
        width: 80

        bodyType: Body.Kinematic
        linearVelocity: Qt.point(-3,0)
        sleepingAllowed: true

        fixtures: [
            Edge {
                vertices: [
                    Qt.point(0, 0),
                    Qt.point(target.width / 4, target.height)
                ]
            },
            Edge {
                vertices: [
                    Qt.point(target.width, 0),
                    Qt.point(target.width * 3/4, target.height)
                ]
            },
            Edge {
                vertices: [
                    Qt.point(target.width / 4, target.height),
                    Qt.point(target.width * 3/4 , target.height)
                ]
                sensor: true
                onBeginContact: {
                    var body = other.getBody();
                    body.target.glassContact = true;
                }
            }
        ]

        Canvas {
            id: glassCanvas
            anchors.fill: parent

            onPaint: {
                var context = glassCanvas.getContext("2d");
                context.beginPath();
                context.strokeStyle = Qt.rgba(0.86, 0.28, 0.07, 1);        // #DD4814 - Ubuntu Orange
                context.moveTo(0, 0);
                context.lineTo(width / 4, height);
                context.lineTo(width * 3/4, height);
                context.lineTo(width, 0);
                context.stroke();
                context.fillStyle = Qt.rgba(0.86, 0.28, 0.07, 0.5);
                context.fill();
            }
        }
    }
}

Ok, we have our glass, we only need to launch it! We write a little function, called launchGlass() in a new js file, named game.js: we’ll call it when the Game is loaded. So, the function has to create the object, and positioning it on the scene. We can do all this with three lines of code:

function launchGlass() {
    var newGlass = glass.createObject(gameScene);
    newGlass.x = gameScene.width;
    newGlass.y = gameScene.height - 200;
}

Now we only need to add Glass to our scene and launch it, so we call the function in Component.onCompleted:

import QtQuick 2.3
import Bacon2D 1.0
import "components"
import "components/game.js" as Game

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want
    currentScene: gameScene

    property bool isDoorOpen

    Scene {
        id: gameScene
        physics: true
        running: true

        anchors.fill: parent

        Bowl {
            id: bowl
            anchors.horizontalCenter: parent.horizontalCenter
        }

        Ball {
            id: ball
        }

        Glass {
            id: glass
        }

        PhysicsEntity {
            id: door
            height: 10
            width: 62.5       // This is the width of the bottleneck of the bowl
            anchors.top: bowl.bottom
            anchors.horizontalCenter: parent.horizontalCenter

            fixtures: Edge{
                sensor: isDoorOpen
                vertices: [
                    Qt.point(0, 0),
                    Qt.point(width, 0)
                ]
            }

            Canvas {
                id: canvas
                visible: !isDoorOpen    // When the user clicks, hide this

                anchors.fill: parent

                onPaint: {
                    var context = canvas.getContext("2d");
                    context.beginPath();
                    context.lineWidth = 5;

                    context.moveTo(0, 0);
                    context.lineTo(width, 0);

                    context.strokeStyle = "black";
                    context.stroke();
                }
            }
        }

        MouseArea {
            anchors.fill: parent
            onPressed: isDoorOpen = true;
            onReleased: isDoorOpen = false;
        }

        Component.onCompleted: {
            for (var i = 0; i < 10; i++) {
                for (var j = 0; j < 10; j++) {
                    var newBox = ball.createObject(gameScene);
                    newBox.x = gameScene.width / 2 - 100 + 15*j;
                    newBox.y = (15*i) - 10;
                }
            }
            Game.launchGlass();
        }
    }
}

Now, if you launch the game, you see the glass that goes from right to left! Awesome! But… it’s only one! We want to launch a new glass when the old one go after the half of the screen. Mhhh, we could use a sensor to detect when a glass reaches the half of the screen, but I think it’s time to introduce a new property of entities, behavior. With behavior you can create a script that runs every x milliseconds. To set after how much milliseconds the script has to run again, you use updateInterval.

So we need a script that every 100 milliseconds checks if the glass is after one third of the width of the screen, and launches another glass if it’s true. Inside a ScriptBehavior you can use the target keyword to access to the parent element.

Of course, we need to import the game.js script also in Glass.qml, using import “game.js” as Game

updateInterval: 100
behavior: ScriptBehavior {
    script: {
        var newPos = target.x;
        if (newPos < gameScene.width / 3){
            Game.launchGlass();
        }
    }
}

The issue with that code is that a glass launches a new glass every 100 milliseconds. We want that a glass launches only one other glass, so we set a flag to check it.

property bool launchedOther: false
updateInterval: 100
behavior: ScriptBehavior {
    script: {
        var newPos = target.x;
        if (newPos < gameScene.width / 3 && !target.launchedOther){
            Game.launchGlass();
            target.launchedOther = true;
        }
    }
}

To end, we want also to destroy glasses when they go out of the screen, to preserve memory:

property bool launchedOther: false
updateInterval: 100
behavior: ScriptBehavior {
    script: {
        var newPos = target.x;
        if (newPos < gameScene.width / 3 && !target.launchedOther){
            Game.launchGlass();
            target.launchedOther = true;
        }

        if (newPos < -2 * target.width) {
            glass.destroy();
        }
    }
}

The score

Next step: we need to destroy balls that don’t go through a glass, and put again on top of the screen balls that go through a glass. Also, we implement score and we save highScore to explore another Bacon2D element.

We already know if a ball goes inside a glass, thanks to glassContact var. Now we need only to implement a sensor at the bottom of the page that manages them behavior:

PhysicsEntity {
    height: 1
    width: 2000

    anchors.left: parent.left
    anchors.leftMargin: -500
    anchors.bottom: parent.bottom

    fixtures: Edge {
        vertices: [
            Qt.point(0, 0),
            Qt.point(width, 0)
        ]

        sensor: true

        onBeginContact: {
            var body = other.getBody();
            if (body.target.glassContact === true) {
                // If the ball went throught a glass, reset it and put it
                // at the top of the scene
                body.target.x = gameScene.width / 2;
                body.target.y = 0;
                body.target.glassContact = false;
                score++;
                if (score > settings.highScore) {
                    settings.highScore = score;
                }
            }
            else {
                body.target.destroy();
            }
        }
    }
}

You should know almost all here, we inserted a sensor at the bottom of the scene, and thanks to onBeginContact we check if the balls is gone throught a glass.

Differences with the previous version: anchors are changed because centerIn doesn't work anymore

The only two new things are score and settings.highScore. Score is a simple var in game:

property int score: 0

settings.highScore is a component of Bacon2D, Settings: it provides local storage for settings or any in game data. It’s very easy to use:

Settings {
    id: settings
    property int highScore: 0;
}

We need only to display score and highScore in the game:

Column {
    anchors.centerIn: parent
    width: parent.width

    Label {
        fontSize: "large"
        width: parent.width
        horizontalAlignment: Text.AlignHCenter
        font.weight: Font.Bold

        text: "score " + score
    }

    Label {
        fontSize: "large"
        width: parent.width
        horizontalAlignment: Text.AlignHCenter

        text: "highScore" + settings.highScore
    }
}

The game is complete now :-)

The main file should be like this:

import QtQuick 2.3
import Bacon2D 1.0
import "components"
import "components/game.js" as Game

Game {
    id: game
    anchors.centerIn: parent

    height: 680
    width: 440

    gameName: "com.ubuntu.developer.rpadovani.100balls" // Ubuntu Touch name format, you can use whatever you want
    currentScene: gameScene

    property bool isDoorOpen
    property int score: 0

    Scene {
        id: gameScene
        physics: true
        running: true

        anchors.fill: parent

        Bowl {
            id: bowl
            anchors.horizontalCenter: parent.horizontalCenter
        }

        Ball {
            id: ball
        }

        Glass {
            id: glass
        }

        PhysicsEntity {
            id: door
            height: 10
            width: 62.5       // This is the width of the bottleneck of the bowl
            anchors.top: bowl.bottom
            anchors.horizontalCenter: parent.horizontalCenter

            fixtures: Edge{
                sensor: isDoorOpen
                vertices: [
                    Qt.point(0, 0),
                    Qt.point(width, 0)
                ]
            }

            Canvas {
                id: canvas
                visible: !isDoorOpen    // When the user clicks, hide this

                anchors.fill: parent

                onPaint: {
                    var context = canvas.getContext("2d");
                    context.beginPath();
                    context.lineWidth = 5;

                    context.moveTo(0, 0);
                    context.lineTo(width, 0);

                    context.strokeStyle = "black";
                    context.stroke();
                }
            }
        }

        PhysicsEntity {
            height: 1
            width: 2000

            anchors.left: parent.left
            anchors.leftMargin: -500
            anchors.bottom: parent.bottom

            fixtures: Edge {
                vertices: [
                    Qt.point(0, 0),
                    Qt.point(width, 0)
                ]

                sensor: true

                onBeginContact: {
                    var body = other.getBody();
                    if (body.target.glassContact === true) {
                        // If the ball went throught a glass, reset it and put it
                        // at the top of the scene
                        body.target.x = gameScene.width / 2;
                        body.target.y = 0;
                        body.target.glassContact = false;
                        score++;
                        if (score > settings.highScore) {
                            settings.highScore = score;
                        }
                    }
                    else {
                        body.target.destroy();
                    }
                }
            }
        }

        Settings {
            id: settings
            property int highScore: 0;
        }

        Column {
            anchors.centerIn: parent
            width: parent.width

            Text {
                width: parent.width
                horizontalAlignment: Text.AlignHCenter
                font.weight: Font.Bold

                text: "score " + score
            }

            Text {
                width: parent.width
                horizontalAlignment: Text.AlignHCenter

                text: "highScore" + settings.highScore
            }
        }

        MouseArea {
            anchors.fill: parent
            onPressed: isDoorOpen = true;
            onReleased: isDoorOpen = false;
        }

        Component.onCompleted: {
            for (var i = 0; i < 10; i++) {
                for (var j = 0; j < 10; j++) {
                    var newBox = ball.createObject(gameScene);
                    newBox.x = gameScene.width / 2 - 100 + 15*j;
                    newBox.y = (15*i) - 10;
                }
            }
            Game.launchGlass();
        }
    }
}

Congrats, now your first game is ready! Try to start it and beat my personal record: 763!

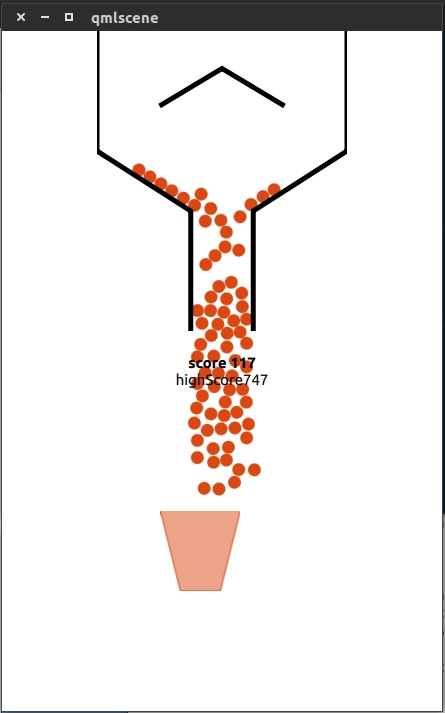

Our first game finished

And now?

In this little tutorial I explained all Bacon2D components I used to build 100balls game for Ubuntu for Phones. Of course, there are a lot of things you could implement to make the game funnier. Here some suggestions:

  • Create a main menu, where the user goes when all balls are lost, so could start a new game without restart the app
  • Create levels, every level has different glasses color, and balls become of the same color of the glass they go throught
  • Implement others game modes: time mode, hard mode (cannot lost more than 10 balls)
  • Insert a text that says how many balls are left
  • Create a pause button

If you’re stuck, take a look to my code on GitHub

Bacon2D

If you want an help on Bacon2D, or create a new game, or do a chat, go on #bacon2D channel on Freenode, join the Google+ community, read the documentation

Feedback

I spent almost two weeks to write this article. You know, I’m not an english native speaker, so please forgive mistakes in the text. I hope all steps are clear enough. If you find an error, or something not clear, or whatever you think of this article, please leave a comment or write an email to me (riccardo AT rpadovani DOT com).

If you want to make me happy, offer me a beer :-)

A big thanks to Ken VanDine for his support to my approach to Bacon2D.

Ciao,
R.
